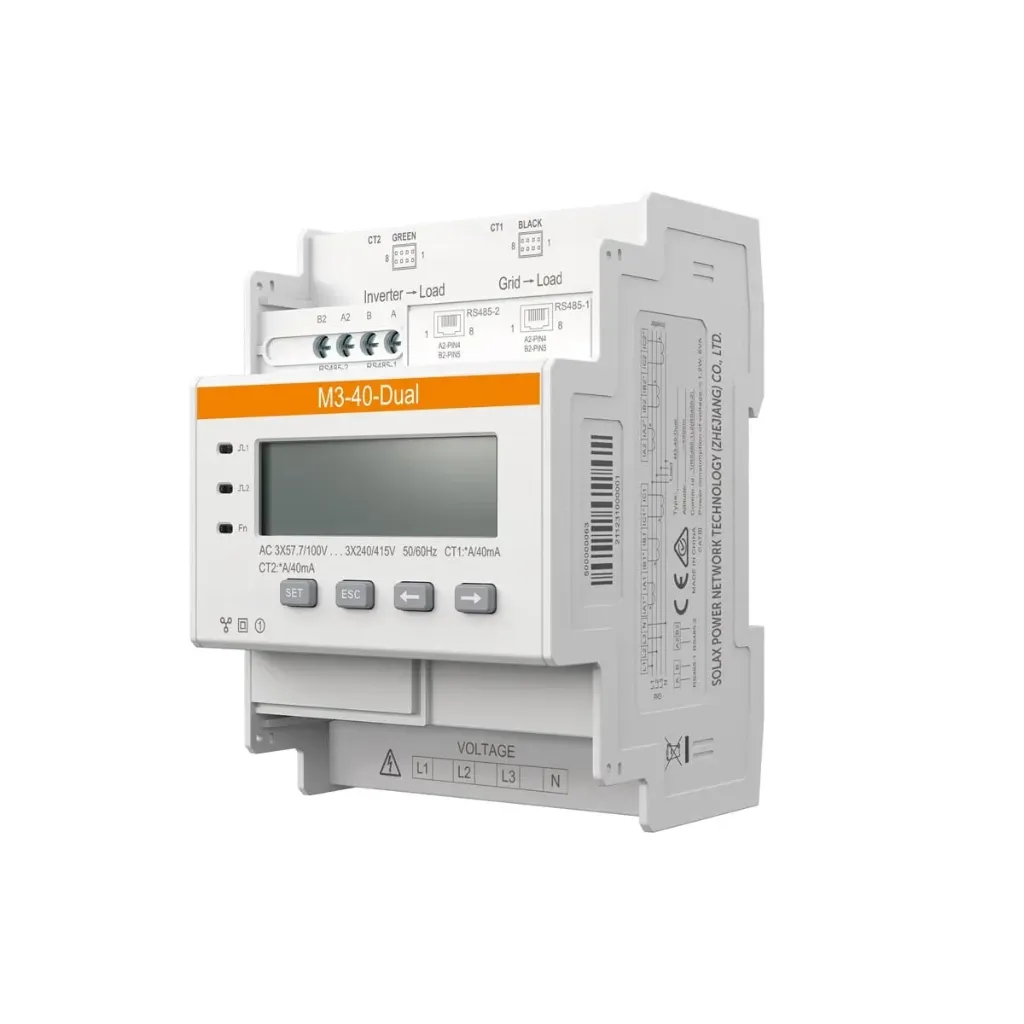

SolaX Smart Meter M3-40-Dual, 3 Phase

M3-40-Dual

Three-phase energy meter
Capable of monitoring power from the grid and from third-part inverters simultaneously
Easy to install with plug-and-play current transformer
High refresh rate of 50ms for quick and precise control
Intelligent phase sequence and adjustment of CT direction to resolve installation issues
Compatible with SolaX Cloud app for remote settings
Separates strong and weak currents for security
35mm DIN rail or front mounting
Class-1 measurement accuracy
Ingress protection: IP20
Rated voltage: 3 × 57.7V / 100V ~ 3 × 240V / 415V
Operating voltage: 50~480V
Power consumption: <1.2W
Dimensions: 72mm x 100mm x 65.5mm

$ 506.25 ex GST Trade price

Documents
